管用攻丝法兰 |
零件编号 PART NUMBER |
进口 IMPORTED(mm) |
出口 EXIT (BSP) |
A |
B |
描述 DESCRIPTION |
|
|
2006 2115 00 |
25 |
20 |
108 |
72 |
PA66,DN25-20 |
|
2006 3215 00 |
32 |
20 |
108 |
72 |
PA66,DN32-20 |
|
|
2006 4115 00 |
40 |
20 |
147 |
111 |
PA66,DN40-20 |
|
|
2006 5115 00 |
50 |
20 |
147 |
111 |
PA66,DN50-20 |
|
|
2006 5215 00 |
50 |
25 |
149 |
114 |
PA66,DN50-25 |
|
|
2006 6115 00 |
63 |
20 |
147 |
111 |
PA66,DN63-20 |
|
|
2006 6215 00 |
63 |
25 |
149 |
114 |
PA66,DN63-25 |
|
|
2006 8115 00 |
80 |
20 |
176 |
135 |
PA66,DN80-20 |
|
|
2006 8215 00 |
80 |
25 |
178 |
138 |
PA66,DN80-25 |
|
|
2006 8315 00 |
80 |
32 |
183 |
141 |
PA66,DN80-32 |
|
|
2006 9115 00 |
100 |
20 |
|
|
铝合金,DN100-20 |
|
|
2006 9215 00 |
100 |
25 |
|
|
铝合金,DN100-25 |
|
|
2006 9315 00 |
100 |
32 |
|
|
铝合金,DN100-32 |
|
|
2006 9415 00 |
100 |
40 |
|
|
铝合金,DN100-40 |
|
|
2006 9515 00 |
100 |
50 |
|
|
铝合金,DN100-50 |
|
|
|
||||||
|
内螺纹攻丝法兰 |
零件编号 PART NUMBER |
进口 IMPORTED(mm) |
出口 EXIT (BSP) |
A |
B |
描述 DESCRIPTION |
|
|
2006 2016 00 |
25 |
1/2" |
|
|
PA66,DN25-1/2" |
|
2006 3016 00 |
32 |
1/2" |
|
|
PA66,DN32-1/2" |
|
|
2006 4016 00 |
40 |
1/2" |
|
|
PA66,DN40-1/2" |
|
|
2006 5016 00 |
50 |
1/2" |
|
|
PA66,DN50-1/2" |
|
|
2006 5116 00 |
50 |
3/4" |
|
|
PA66,DN50-3/4" |
|
|
2006 6016 00 |
63 |
1/2" |
|
|
PA66,DN63-1/2" |
|
|
2006 6116 00 |
63 |
3/4" |
|
|
PA66,DN63-3/4" |
|
|
2006 8016 00 |
80 |
1/2" |
|
|
PA66,DN80-1/2" |
|
|
2006 8116 00 |
80 |
3/4" |
|
|
PA66,DN80-3/4" |
|
|
2006 9016 00 |
100 |
1/2" |
|
|
铝合金,DN100-1/2" |
|
|
2006 9116 00 |
100 |
3/4" |
|
|
铝合金,DN100-3/4" |
|
|
|
|
|
|
|
|
|
|

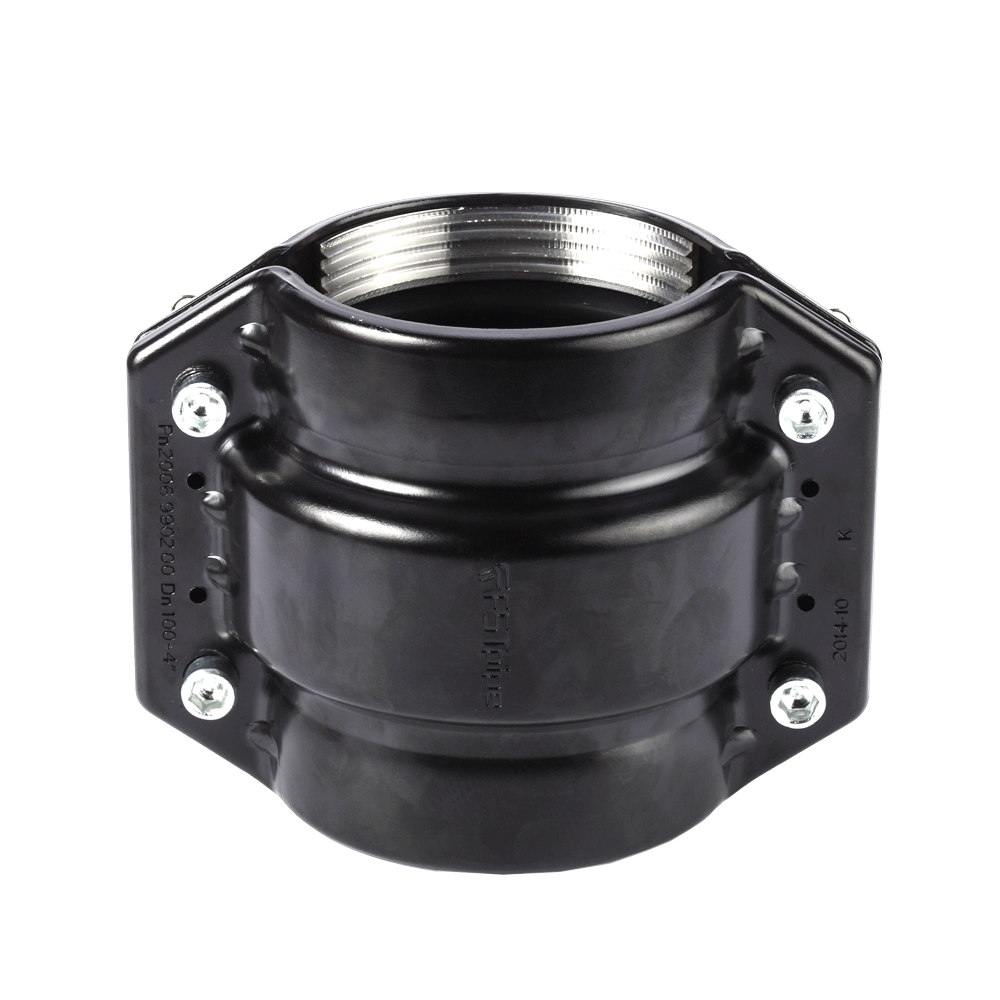

抱箍 |
零件编号 PART NUMBER |
口径 APERTURE(mm) |
A |
B |
C |
描述 DESCRIPTION |
|
|
|
|
2006 9902 00 2006 9902 00 2006 AA02 00 |
100 100 150 |
138 |
131 |
|
SPCD,DN100，老款 |
|
铝合金,DN100，配2个100卡箍,新款 |
|||||||
|
铝合金,DN150，配2个150卡箍 |
|||||||
|
|
||||||
|
卡箍 |
零件编号 PAR NUMBER |
口径 APERTURE(mm) |
A |
B |
C |
描述 DESCRIPTION |
|
|
2006 99KK 00 2006 AAKK 00 |
100 150 |
|
|
|
铝合金,DN100 |
|
铝合金,DN150 |
||||||
|
|
||||||
|

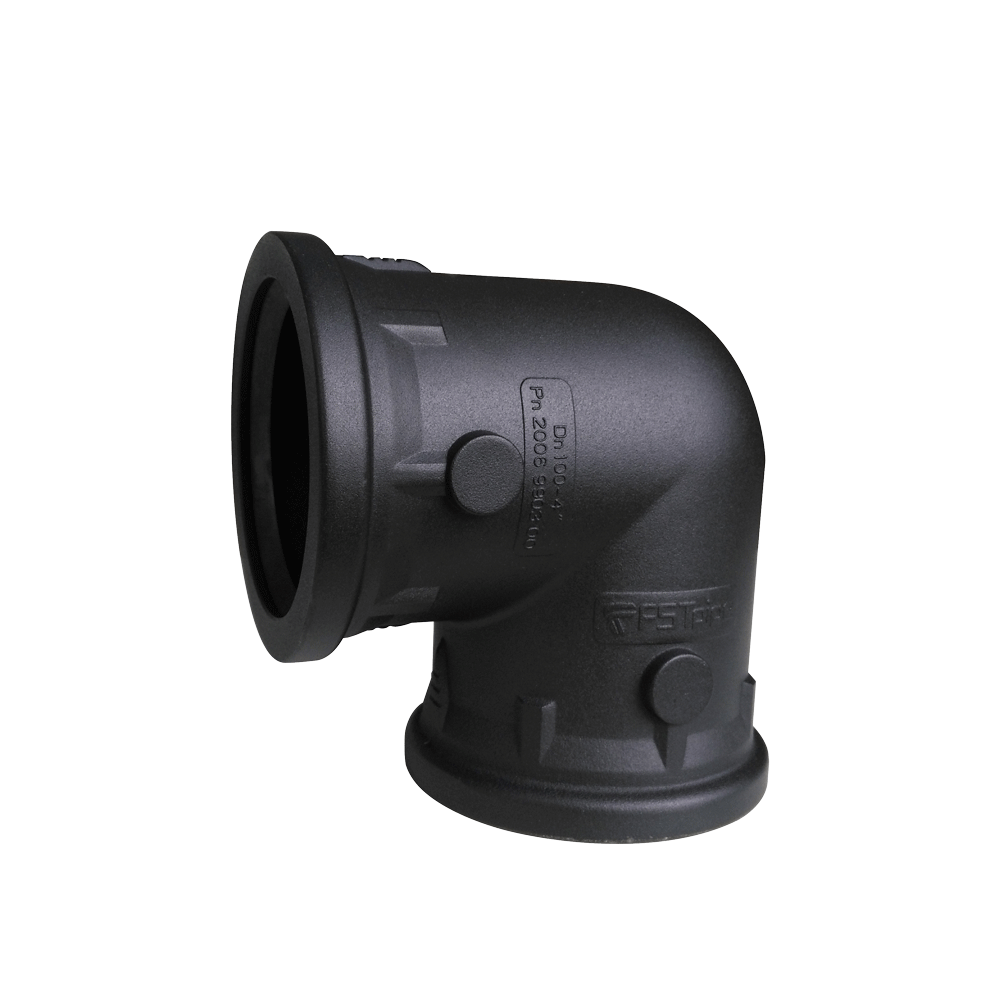

90度弯头 |
零件编号 PART NUMBER |
口径 APERTURE(mm) |
A |
B |
C |
描述 DESCRIPTION |
|
|
2006 1103 00 |
20 |
87 |
47 |
PA66,DN20 |
|
|
2006 2203 00 |
25 |
94 |
53 |
PA66,DN25 |
||
|
2006 3303 00 |
32 |
109 | 57 |
铝合金,DN32 |
||
 |
2006 4403 00 |
40 |
126 |
70 |
铝合金,DN40 |
|
| 2006 5503 00 | 50 |
150 |
81 |
铝合金,DN50 |
||
 |
2006 6603 00
2006 8803 00 |
63
80 |
177 |
98 |
铝合金,DN63 |
|
|
213 |
117 |
铝合金,DN80 |
||||
|
|
零件编号 PARTNUMBER |
口径 APERTURE(mm) |
A |
B |
C |
描述 DESCRIPTION |
|
2006 9903 00 2006 9903 00 2006 AA03 00 |
100 100 150 |
250 |
100 |
铝合金,DN100,配2个100对接,老款 |
||
|
铝合金,DN150,配2个100卡箍,新款 |
||||||
|
铝合金,DN150，配2个150卡箍 |
||||||
|
45度弯头 |
零件编号 PART NUMBER |
口径 APERTURE(mm) |
A |
B |
C |
描述 DESCRIPTION |
|
|
2006 1104 00 2006 2204 00 2006 4404 00 2006 5504 00 |
20 25 40 50 |
107 113 163 185 |
47 53 69 80 |
PA66,DN20 |
|
|
PA66,DN25 |
||||||
|
铝合金,DN40 |
||||||
|
铝合金,DN50 |
||||||
|
|
||||||
|

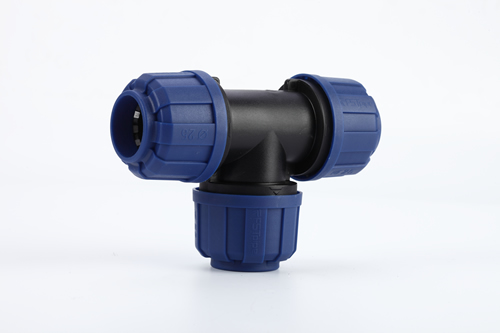

等径三通 |
零件编号 PART NUMBER |
口径 APERTURE（mm） |
A |
B |
C |
描述 DESCRIPTION |
|
|
2006 1105 00 2006 2205 00 2006 3305 00 2006 4405 00 2006 5505 00 2006 6605 00 2006 8805 00 |
20 25 32 40 50 63 80 |
127 132 161 182 210 256 308 |
87 94 109 126 150 177 213 |
47 53 57 70 90 98 117 |
PA66,DN20 |
|
PA66,DN25 |
||||||
|
铝合金,DN32 |
||||||
|
|
铝合金,DN40 |
|||||
|
铝合金,DN50 |
||||||
|
铝合金,DN80 |
||||||
 |

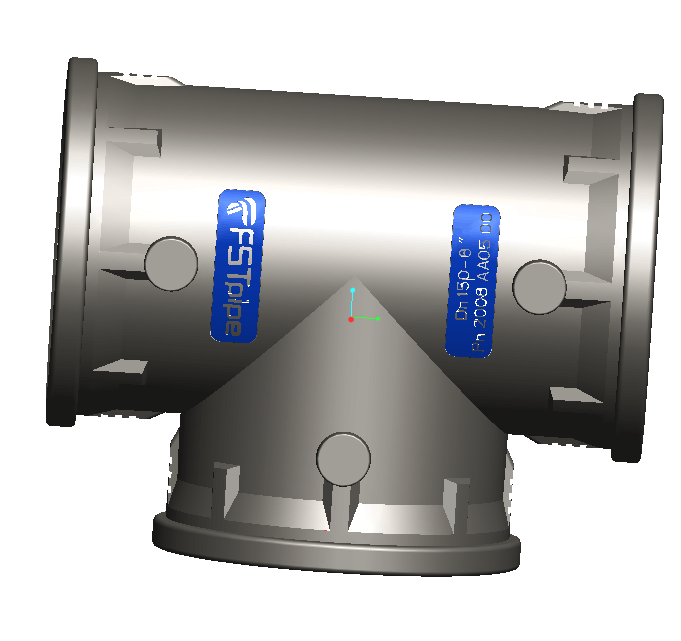

零件编号 PART NUMBER |
口径 APERTURE(mm) |
A |
B |
C |
描述 DESCRIPTION |
|
2006 9905 00 2006 9905 00 2006 AA05 00 |
100 100 150 |
304 |
202 |
100 |
铝合金,DN100，配3个100对接, 老款 |
|
 |
铝合金,DN100，配3个100卡箍, 新款 |
|||||
|
铝合金, DN150, 配3个150卡箍 |
||||||
|
|
||||||
|

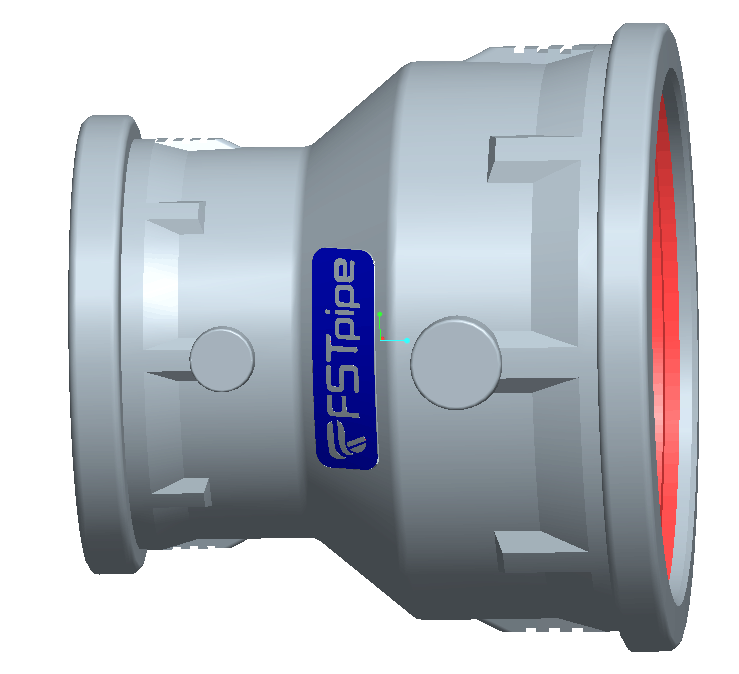

异径对接 |
零件编号 PART NUMBER |
进口 IMPORTED(mm) |
出口 EXIT (mm) |
A |
B |
描述 DESCRIPTION |
 |
2006 2109 00 2006 3109 00 2006 4209 00 2006 4309 00 |
25 32 40 40 |
20 20 25 32 |
100 110 110 139 |
53 60 70 70 |
PA66,DN25-DN20 |
|
PA66,DN32-DN20 |
||||||
|
PA66,DN40-DN25 |
||||||
|
铝合金,DN40-DN32 |
||||||
 |
2006 540900 2006 6509 00 2006 8509 00 |
50 63 80 |
40 50 50 |
155 181 211 |
90 98 117 |
铝合金,DN50-DN40 |
|
铝合金,DN63-DN50 |
||||||
|
铝合金,DN80-DN50 |
||||||
|
2006 8609 00 |
80 |
63 |
227 |
117 |
铝合金,DN80-DN63 |
|
|
2006 9809 00 |
100 |
80 |
304 |
100 |
铝合金,DN100-DN80,老款 |
|
 |
2006 9809 00 |
100 |
80 |
|
铝合金,DN100-DN80, 配100卡箍1套，DN80快插，新款 |
|
|
2006 A909 00 |
150 |
100 |
|
|
铝合金,DN150-DN100,配150、100卡箍各1套 |
|
|
异径三通 |
零件编号 PART NUMBER |
进口 IMPORTED(mm) |
出口 EXIT (mm) |
A |
B |
描述 DESCRIPTION |
|||||||
 |
2006 2107 00 |
25 |
20 |
134 |
97 |
PA66,DN25-DN20 |
|||||||
|
2006 3107 00 |
32 |
20 |
|
|
PA66,DN32-DN20 |
||||||||
|
2006 4207 00 |
40 |
25 |
PA66,DN40-DN25 |
||||||||||
|
2006 4307 00 |
40 |
32 |
|
|
铝合金,DN40-DN32 |
||||||||
 |
2006 5407 00 |
50 |
40 |
182 |
122 |
铝合金,DN50-DN40 |
|||||||
|
2006 6507 00 |
63 |
50 |
210 |
144 |
铝合金,DN63-DN50 |
||||||||
|
2006 8507 00 |
80 |
50 |
256 |
163 |
铝合金，DN80-50 |
||||||||
|
2006 8607 00 |
80 |
63 |
308 |
181 |
铝合金，DN80-63 |
||||||||
|
2006 9507 00 |
100 |
50 |
308 |
197 |
铝合金，DN100-50 |
||||||||
|
|
2006 9607 00 |
100 |
63 |
304 |
250 |
铝合金,DN100-DN63 |
|||||||
|
2006 9807 00 |
100 |
80 |
304 |
250 |
铝合金,DN100-DN80 |
||||||||
|
2006 A907 00 |
150 |
100 |
304 | 250 |
铝合金,DN150-DN100, 配2个150、1个100卡箍 |
||||||||
|
|
|||||||||||||
|
外螺纹对接 |
零件编号 PART NUMBER |
口径 APERTURE(mm) |
出口 EXIT (BSP) |
A |
B |
描述 DESCRIPTION |
|||||||
 |
2006 1010 00 |
20 |
1/2" |
65 |
47 |
铝合金+PA66,DN20-1/2" |
|||||||
|
2006 1110 00 |
20 |
3/4" |
65 |
47 |
铝合金+PA66,DN20-3/4" |
||||||||
|
2006 2110 00 |
25 |
3/4" |
71 |
53 |
铝合金+PA66,DN25-3/4" |
||||||||
|
2006 2210 00 |
25 |
1" |
72 |
53 |
铝合金+PA66,DN25-1" |
||||||||
|
2006 3310 00 |
32 |
1"1/4" |
90 |
57 |
铝合金,DN32-1"1/4" |
||||||||
 |
2006 4410 00 |
40 |
1"1/2" |
100 |
70 |
铝合金,DN40-1"1/2" |
|||||||
|
2006 5510 00 |
50 |
2" |
107 |
90 |
铝合金,DN50-2" |
||||||||
|
2006 6610 00 |
63 |
2"1/2" |
132 |
98 |
铝合金,DN63-2"1/2" |
||||||||
|
2006 8610 00 |
80 |
2"1/2" |
149 |
117 |
铝合金,DN80-2"1/2" |
||||||||
|
2006 8810 00 |
80 |
3" |
149 |
117 |
铝合金,DN80-3" |
||||||||
|
内螺纹对接 |
零件编号 PART NUMBER |
进口 IMPORTED(mm) |
出口 EXIT (BSP) |
A |
B |
描述 DESCRIPTION |
|||||||
|
|
2006 1010 00 |
20 |
1/2" |
|
|
PA66,DN20-1/2" |
|||||||
|
2006 2011 00 |
25 |
1/2" |
|
|
PA66,DN25-1/2" |
||||||||
|
2006 2111 00 |
25 |
3/4" |
|
|
PA66,DN25-3/4" |
||||||||
|
2006 3011 00 |
32 |
1/2" |
|
|
PA66,DN32-1/2" |
||||||||
|
2006 4111 00 |
40 |
3/4" |
|
|
PA66,DN40-3/4" |
||||||||
 |
2006 4411 00 |
40 |
1"1/2" |
102 |
70 |
铝合金,DN40-1"1/2" |
|||||||
|
2006 5511 00 |
50 |
2" |
108 |
90 |
铝合金,DN50-2" |
||||||||
|
2006 6611 00 |
63 |
2"1/2" |
129 |
98 |
铝合金,DN63-2"1/2" |
||||||||
|
注：对接20 25出口端齿环螺母改为内螺纹齿环螺母 |
|||||||||||||
|
内螺纹异径弯头 |
零件编号 PART NUMBER |
进口 IMPORTED(mm) |
出口 EXIT (BSP) |
A |
B |
描述 DESCRIPTION |
|||||||
 |
2006 1020 00 |
20 |
1/2" |
|
|
PA66,DN20-1/2" |
|||||||
|
2006 2120 00 |
25 |
3/4" |
|
|
PA66,DN25-3/4" |
||||||||
|
注：弯头20 25出口端齿环螺母改为内螺纹齿环螺母 |
|||||||||||||
|
内螺纹异径三通 |
零件编号 PART NUMBER |
进口 IMPORTED(mm) |
出口 EXIT (BSP) |
A |
B |
描述 DESCRIPTION |
|||||||
 |
2006 1019 00 |
20 |
1/2" |
|
|
PA66,DN20-1/2" |
|||||||
|
2006 2019 00 |
25 |
1/2" |
|
|
PA66,DN25-1/2" |
||||||||
|
2006 2119 00 |
25 |
3/4" |
|
|
PA66,DN25-3/4" |
||||||||
|
2006 3019 00 |
32 |
1/2" |
|
|
PA66,DN32-1/2" |
||||||||
 |
2006 4119 00 |
40 |
3/4" |
|
PA66,DN40-3/4" |
||||||||
|
2006 A807 00 |
150 |
3" |
铝合金，DN150-3“（DN80） |
||||||||||
|
注：三通20 25出口端齿环螺母改为内螺纹齿环螺母 |
|||||||||||||
|
堵头 |
零件编号 PART NUMBER |
口径 APERTURE(mm) |
A |
B |
C |
描述 DESCRIPTION |
|||||||
 |
2006 1006 00 |
20 |
50 |
47 |
|
PA66,DN20 |
|||||||
|
2006 2006 00 |
25 |
51 |
53 |
PA66,DN25 |
|||||||||
|
2006 3006 00 |
32 |
|
PA66,DN32 |
||||||||||
|
2006 4006 00 |
40 |
|
|
铝制堵帽,DN40 |
|||||||||
|
2006 5006 00 |
50 |
铝制堵帽,DN50 |
|||||||||||
|
2006 6006 00 |
63 |
铝制堵帽,DN63 |
|||||||||||
|
2006 8006 00 |
80 |
|
铝制堵帽,DN80 |
||||||||||
|
|
|||||||||||||
|

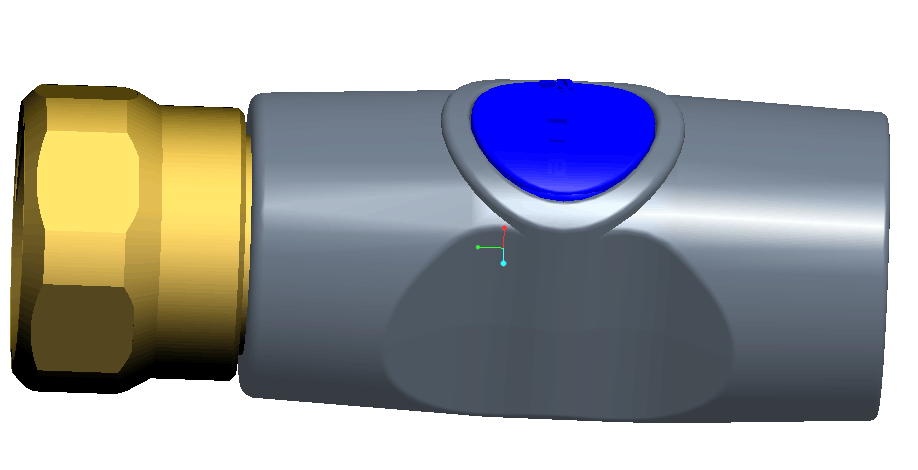

壁式直插对接 |
零件编号 PART NUMBER |
进口 IMPORTED(mm) |
出口 EXIT (BSP) |
A |
B |
描述 DESCRIPTION |
|||||||
 |
2006 1023 00 |
20 |
1/2"*2 |
112 |
100 |
PA66,DN20-1/2"*2,含自动排水 |
|||||||
|
2006 2023 00 |
25 |
1/2"*2 |
113 |
100 |
PA66,DN25-1/2"*2,含自动排水 |
||||||||
|
2006 3023 00 |
32 |
1/2"*2 |
119 |
100 |
PA66,DN32-1/2"*2,含自动排水 |
||||||||
|
|
|||||||||||||
|
壁式内螺纹对接 |
零件编号 PART NUMBER |
进口 IMPORTED(mm) |
出口 EXIT (BSP) |
A |
B |
描述 DESCRIPTION |
|||||||
|
|
2006 0025 00 |
1/2" |
1/4" |
73 |
84 |
铝合金,1/2"-1/4" |
|||||||
|
2006 1025 00 |
3/4" |
1/2" |
73 |
84 |
铝合金,3/4"-1/2" |
||||||||
|

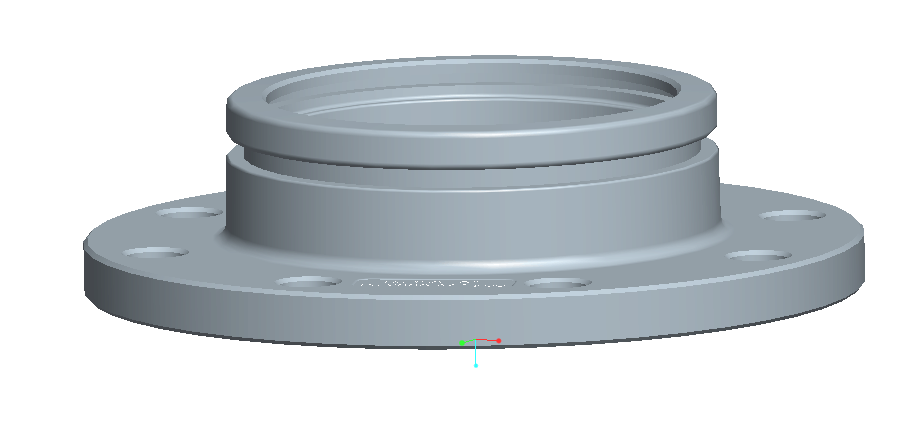

铝制法兰对接 |
零件编号 PART NUMBER |
进口 IMPORTED(mm) |
出口 EXIT (BSP) |
A |
B |
描述 DESCRIPTION |
|||||||
 |
2006 5526 00 |
DN50 |
50 |
|
铝合金,DN50-50 |
||||||||
|
2006 6626 00 |
DN65 |
63 |
铝合金,DN65-63 |
||||||||||
|
2006 8526 00 |
DN80 |
50 |
铝合金,DN80-50 |
||||||||||
|
2006 8626 00 |
DN80 |
63 |
铝合金,DN80-63 |
||||||||||
|
2006 8826 00 |
DN80 |
80 |
铝合金,DN80-80 |
||||||||||
|
2006 9626 00 |
DN100 |
63 |
铝合金,DN100-63 |
||||||||||
 |
006 9826 00 |
DN100 |
80 |
|
铝合金,DN100-80 |
||||||||
|
2006 9926 00 |
DN100 |
100 |
|
|
铝合金,DN100-100，老款 |
||||||||
|
2006 A926 00 |
DN100 |
100 |
|
|
铝合金,DN100-100，配1套100卡箍,新款 |
||||||||
|
2006 A926 00 |
DN150 |
100 |
|
|
铝合金,DN150-100，配套个100卡箍 |
||||||||
|
2006 AA26 00 |
DN150 |
150 |
|
|
铝合金,DN150-150，配1套150卡箍 |
||||||||
|
注：50、63、80法兰片均已包含8个M16*70长的六角螺栓，16个平垫、8个弹垫（50的少一半），100口径的六角螺栓尺寸为M16*90 |
|||||||||||||
|
|
|||||||||||||
|
外螺纹插座 |
零件编号 PART NUMBER |
进口 IMPORTED(BSP) |
出口 EXIT (mm) |
A |
B |
描述 DESCRIPTION |
|||||||
 |
2006 0032 00 |
1/4" |
φ8 |
|
|
聚合物,1/4"-φ8 |
|||||||
|
2006 0033 00 |
1/2" |
φ8 |
|
|
聚合物,1/2"-φ8 |
||||||||
|
2006 0034 00 |
1/2" |
φ11 |
|
|
聚合物,1/2"-φ11 |
||||||||
|
内螺纹插座 |
零件编号 PART NUMBER |
进口 IMPORTED(BSP) |
出口 EXIT (mm) |
A |
B |
描述 DESCRIPTION |
|||||||
|
|
2006 0035 00 |
1/4" |
φ8 |
|
|
聚合物,1/4"-φ8 |
|||||||
|
2006 0036 00 |
1/2" |
φ8 |
|
|
聚合物,1/2"-φ8 |
||||||||
|
2006 0037 00 |
1/2" |
Φ11 |
|
|
聚合物,1/2"-φ11 |
||||||||
|
|
|||||||||||||
|
软管插座 |
零件编号 PART NUMBER |
进口 IMPORTED(BSP) |
出口 EXIT (mm) |
A |
B |
描述 DESCRIPTION |
|||||||
 |
2006 0038 00 |
φ8 |
φ8 |
|
|
聚合物,φ8-φ8 |
|||||||
|
2006 0039 00 |
Φ11 |
Φ11 |
|
聚合物,φ11-φ11 |
|||||||||
|
外螺纹插头 |
零件编号 PART NUMBER |
进口 IMPORTED(BSP) |
出口 EXIT (mm) |
A |
B |
描述 DESCRIPTION |
|||||||
 |
2006 0040 00 |
φ8 |
1/4" |
40 |
|
铝合金硬质处理,φ8-1/4" |
|||||||
|
2006 0041 00 |
Φ11 |
1/2" |
55 |
|
铝合金硬质处理,φ11-1/2" |
||||||||
|
软管插头 |
零件编号 PART NUMBER |
进口 IMPORTED(BSP) |
出口 EXIT (mm) |
A |
B |
描述 DESCRIPTION |
|||||||
 |
2006 0042 00 |
φ8 |
φ6 |
45 |
铝合金硬质处理,φ8-φ6 |
||||||||
|
2006 0043 00 |
φ8 |
Φ8 |
45 |
|
铝合金硬质处理,φ8-φ8 |
||||||||
|
2006 0044 00 |
Φ11 |
Φ11 |
56 |
铝合金硬质处理,φ11-φ11 |
|||||||||
